Stealth is the lightest and brightest light of
its kind out there

It is an LED lighting fixture that provides powerful and hassle-free lighting solutions for filmmakers. It has a concealed cable tray which makes it easy to mount the light to flat surfaces, and it has multiple rigging options. The light has a thin bezel, so you can arrange multiple lights to create a larger screen of lights, allowing your creative vision to come to life.

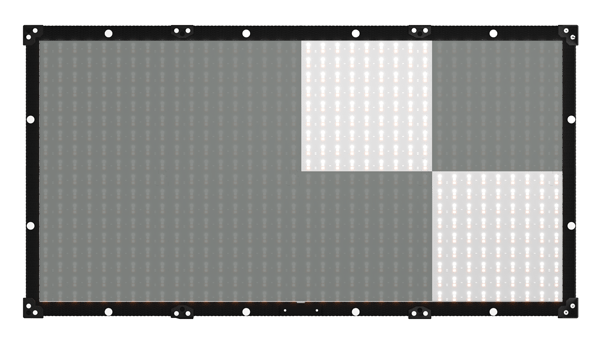

Stealth comes with a pixel format of 240mm by 240mm. The square form of the pixel ensures there is visual consistency across all sizes. This one-pixel packs just shy of 40W of brightness.

This makes the Stealth range the most versatile lighting fixture with high colour accuracy on any set.

Stealth comes in four size specifications.

STEALTH_PIxel-gif
Stealth
stealth-logos-04

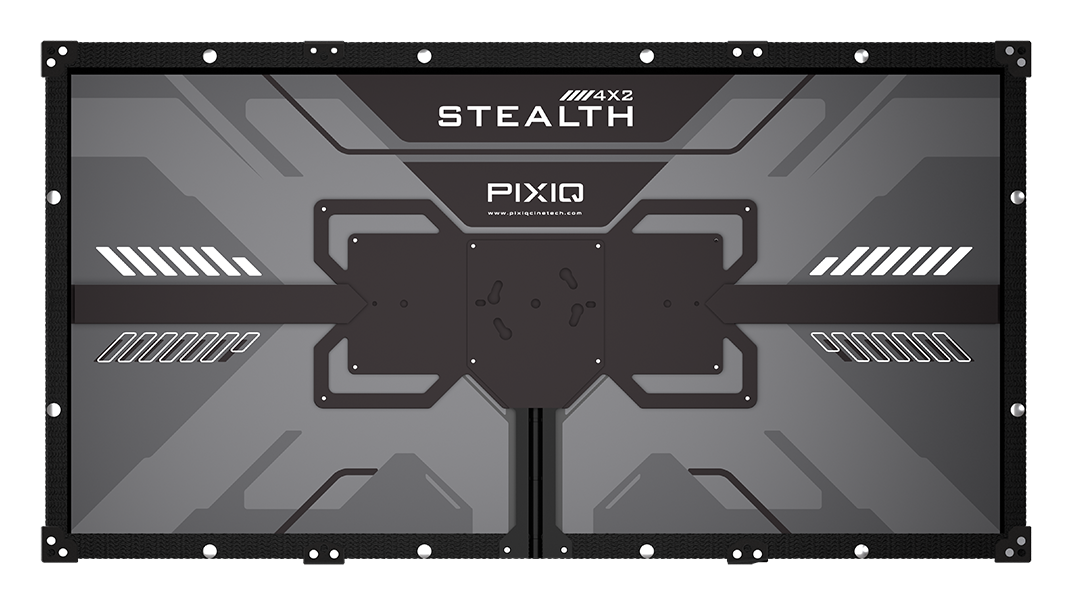

The Stealth 4×2 is lightweight without compromising on strength.
It weighs a mere 4.2 kg but delivers 300W. We did this by designing the frame with aircraft-grade aluminium. The aluminium backing improves heat dissipation, sustaining the LED performance.

Specifications

Product Stealth 4x2
Power 300W Nominal
Voltage 32Vdc, 5V signals
Current 10A max
LEDs Red, Green, Blue, Warm White, Cool White
CCT Range 2600K - 15000K
CRI 95+
Controller Hub Smart Hub 600
Power Connector CN-Linko LP-20-14
Dimming Range 0 - 100%
Pixels (individually controllable zones) 8
Battery Operation Yes, Check Smart Hub 600 for more details
Rigging options Corner cap recess, Velcro, Kupo Mount (T-12 compatible)
Mount Kupo KCP-415 included in kit
Structure Robust Aluminium extrusion frame
Weight 4.2Kg
Dimensions 1050mm x 560mm x 15mm
Max Ambient Temp 40 degrees C
Max Case Temp 70 degrees C
lux-_R2-01

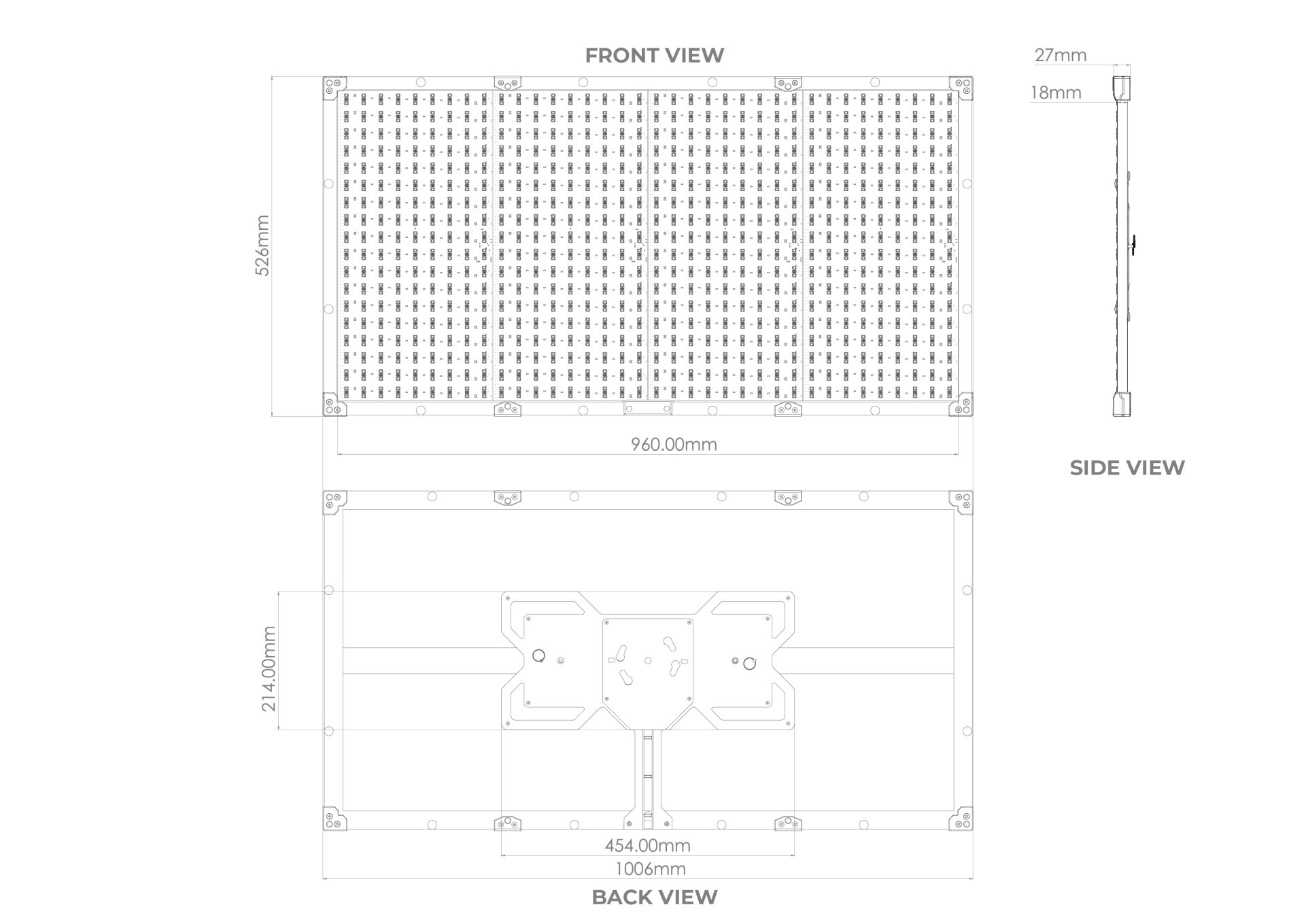

stealth-4x2

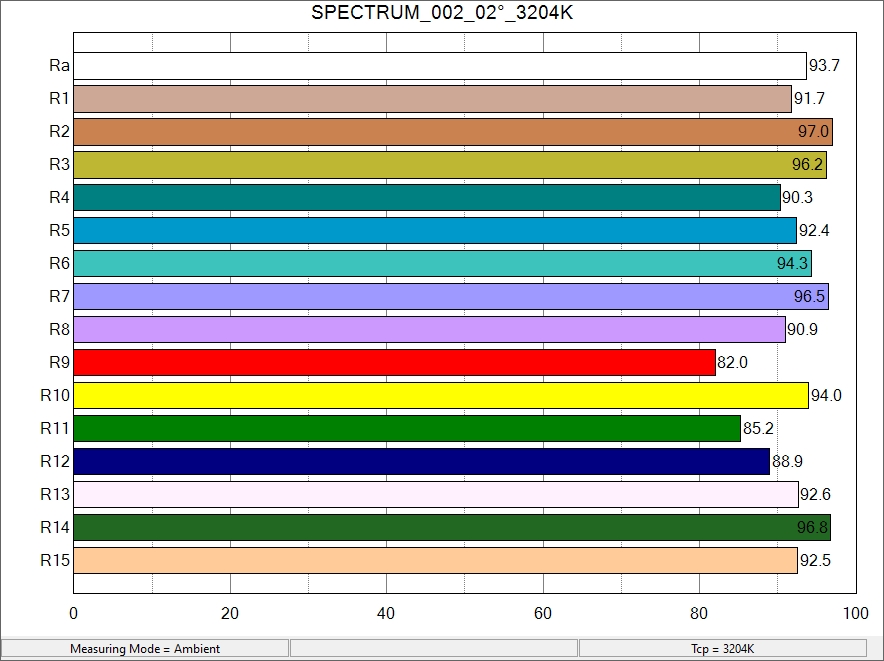

3200K COLOR INDEX

3200K COLOR INDEX

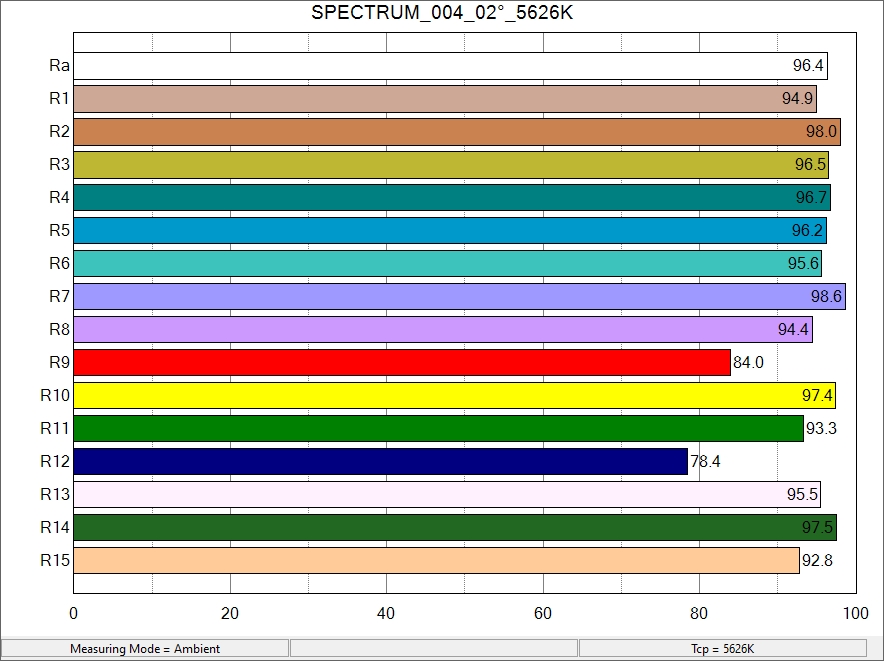

5600K COLOR INDEX

5600K COLOR INDEX

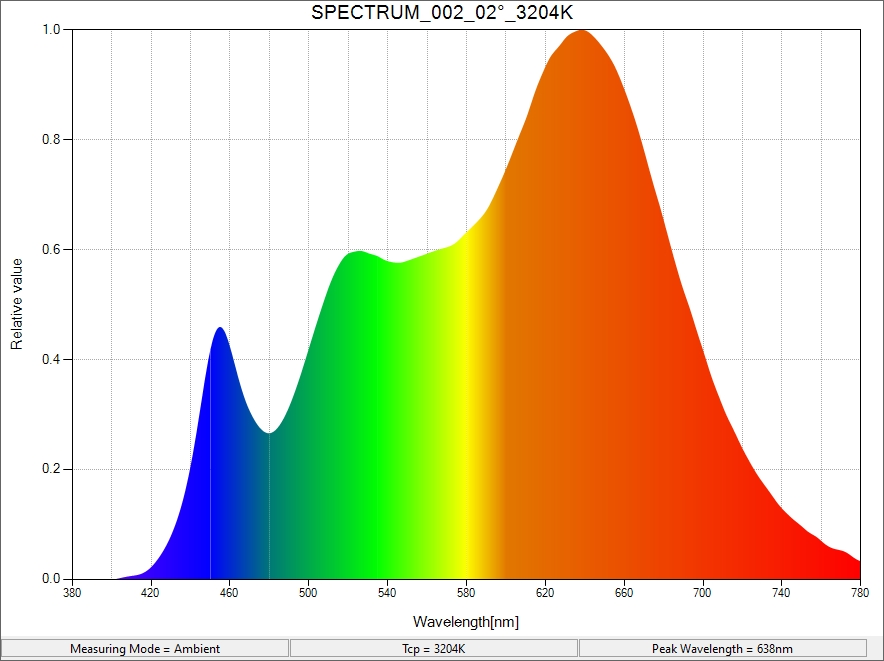

3200K SPECTRAL GRAPH

3200K SPECTRUL GRAPH

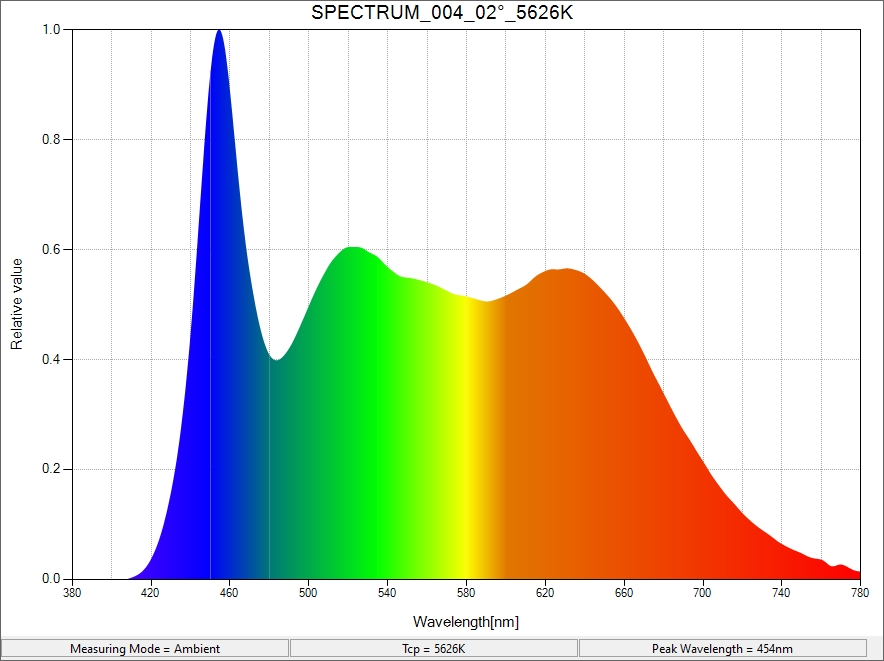

5600K SPECTRAL GRAPH

5600K SPECTRUL GRAPH

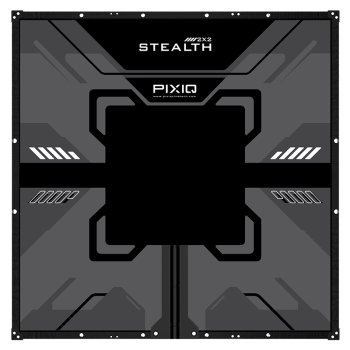

STEALTH MAT 2X2-web
product logos_2x2

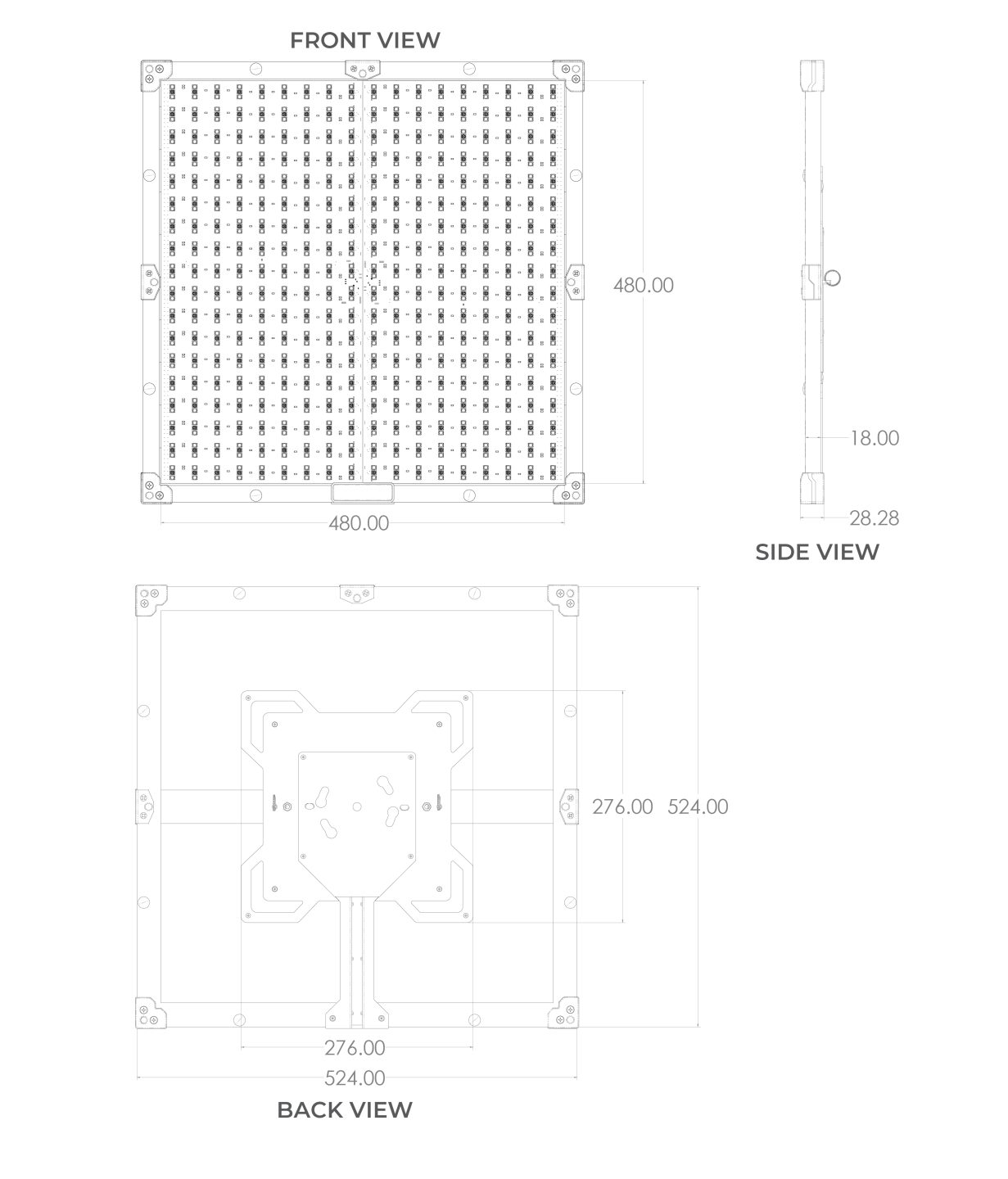

The Stealth 2×2 has a tile-like form factor which makes it perfect for practical lighting. It is the golden zone between portability and power. The light weighs 2.5 kilos, and the internal frame is built from stainless steel which makes the light strong, and durable. At 100%, the light gives 150W illumination.

Specifications

Product Stealth 2x2
Power 150W Nominal
Voltage 32Vdc, 5V signals
Current 5A max
LEDs Red, Green, Blue, Warm White, Cool White
CCT Range 2600K - 15000K
CRI 95+
Controller Hub Smart Hub 150
Power Connector CN-Linko LP-16-8
Dimming Range 0 - 100%
Pixels (individually controllable zones) 4
Battery Operation Yes, Check Smart Hub 600 for more details
Rigging options Corner cap recess, Velcro, Kupo Mount (T-12 compatible)
Mount Kupo KCP-415 included in kit
Structure Robust Aluminium extrusion frame
Weight 2.2Kg
Dimensions 560mm x 560mm x 14mm
Max Ambient Temp 40 degrees C
Max Case Temp 70 degrees C
lux-_R2-01
Stealth2x2

3200K COLOR INDEX

3200K COLOR INDEX

5600K COLOR INDEX

5600K COLOR INDEX

3200K SPECTRAL GRAPH

3200K SPECTRUL GRAPH

5600K SPECTRAL GRAPH

5600K SPECTRUL GRAPH

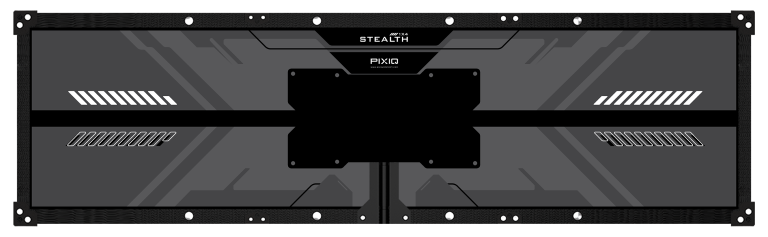

STEALTH MAT 1X4-web
product logos-02

The Stealth 1×4 is a thin and slender form factor that is perfect for tight spaces like corners in an indoor shoot. The stainless steel internal frame makes it incredibly rigid. The light weighs 2.5 kilos and the light gives 150W illumination.

Specifications

Product Stealth 1x4
Power 150W Nominal
Voltage 32Vdc, 5V signals
Current 5A max
LEDs Red, Green, Blue, Warm White, Cool White
CCT Range 2600K - 15000K
CRI 95+
Controller Hub Smart Hub 150
Power Connector CN-Linko LP-16-8
Dimming Range 0 - 100%
Pixels (individually controllable zones) 4
Battery Operation Yes, Check Smart Hub 600 for more details
Rigging options Corner cap recess, Velcro, Kupo Mount (T-12 compatible)
Mount Kupo KCP-415 included in kit
Structure Robust Aluminium extrusion frame
Weight 2.2Kg
Dimensions 1050mm x 320mm x 14mm
Max Ambient Temp 40 degrees C
Max Case Temp 70 degrees C
lux-_R2-01

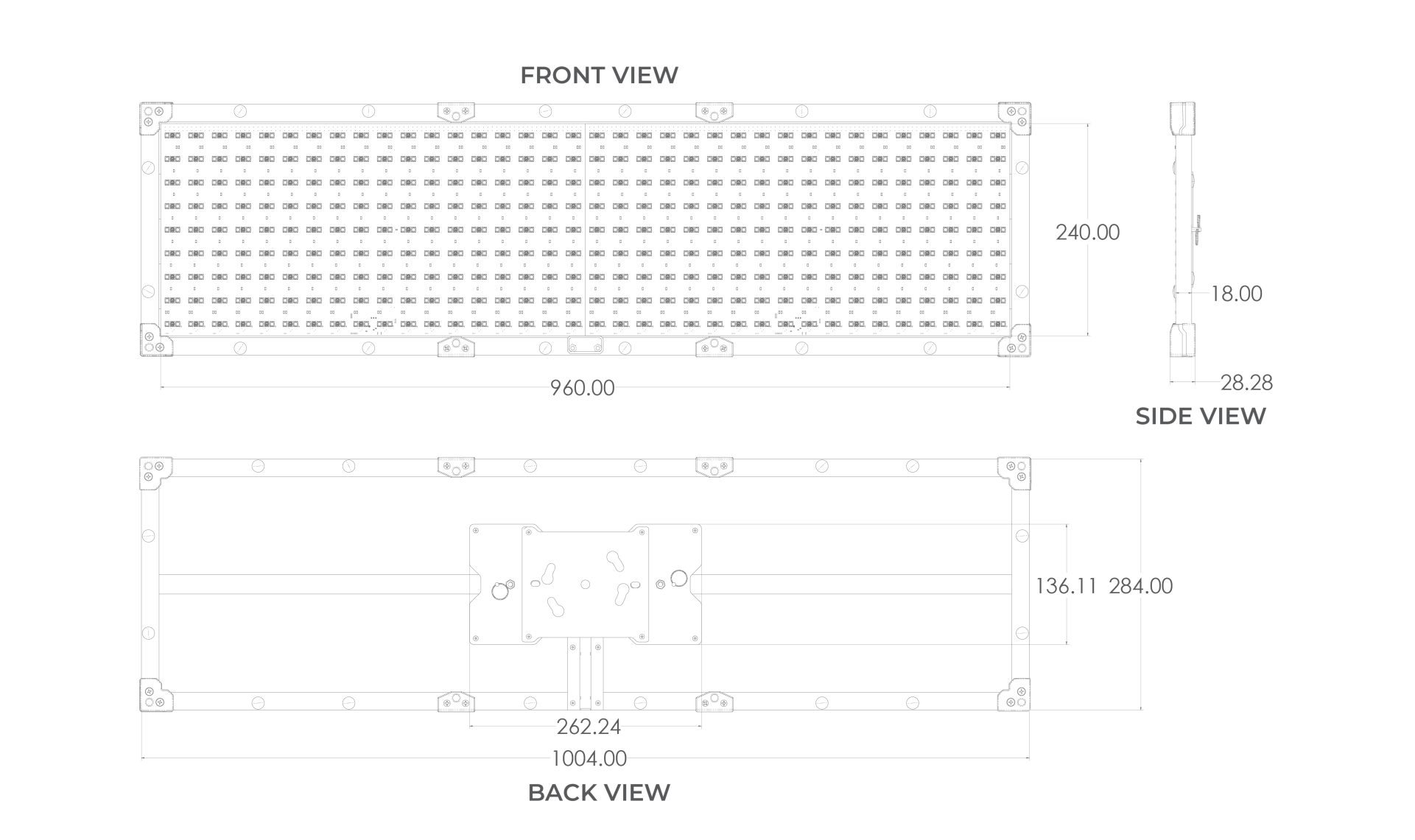

STEALTH_1X4_OVERALL_DIMENSIONS-01

3200K COLOR INDEX

3200K COLOR INDEX

5600K COLOR INDEX

5600K COLOR INDEX

3200K SPECTRAL GRAPH

3200K SPECTRUL GRAPH

5600K SPECTRAL GRAPH

5600K SPECTRUL GRAPH

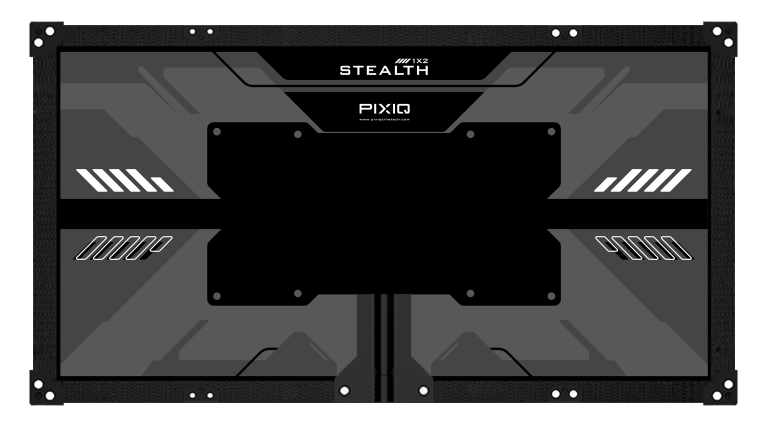

STEALTH 1x2
product logos-03

The Stealth 1×2 is the smallest of them all. The stainless steel internal frame makes it incredibly rigid. The light weighs 1.2 kg. The light gives 75W illumination.

Specifications

Product Stealth 1x2
Power 75W Nominal
Voltage 32Vdc, 5V signals
Current 2.5A max
LEDs Red, Green, Blue, Warm White, Cool White
CCT Range 2600K - 15000K
CRI 95+
Controller Hub Smart Hub 150
Power Connector CN-Linko LP-16-8
Dimming Range 0 - 100%
Pixels (individually controllable zones) 2
Battery Operation Yes, Check Smart Hub 600 for more details
Rigging options Corner cap recess, Velcro, Kupo Mount (T-12 compatible)
Mount Kupo KCP-415 included in kit
Structure Robust Aluminium extrusion frame
Weight 2.2Kg
Dimensions 560mm x 320mm x 14mm
Max Ambient Temp 40 degrees C
Max Case Temp 70 degrees C
lux-_R2-01

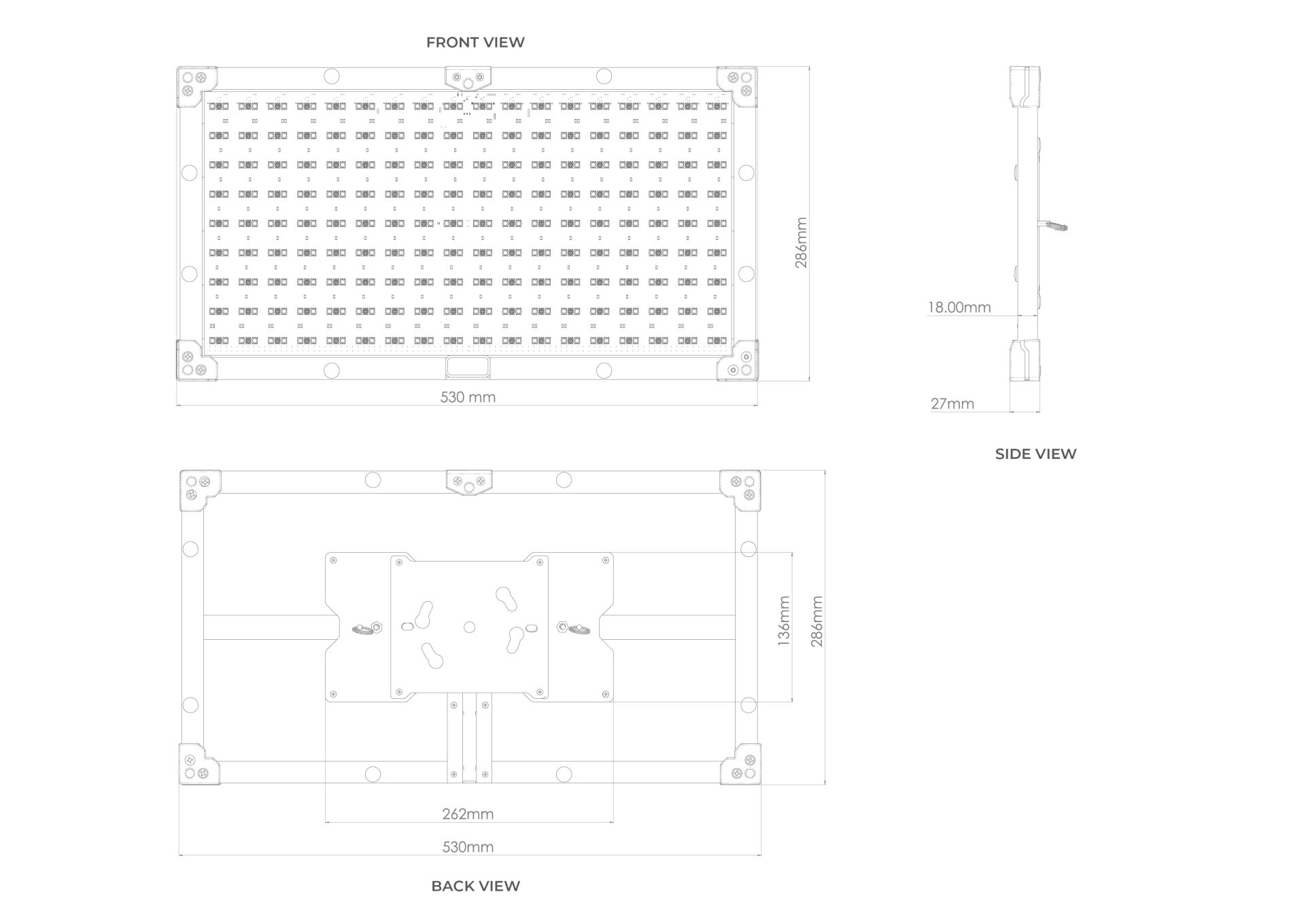

STEALTH_1X2_OVERALL_DIMENSIONS-01

3200K COLOR INDEX

3200K COLOR INDEX

5600K COLOR INDEX

5600K COLOR INDEX

3200K SPECTRAL GRAPH

3200K SPECTRUL GRAPH

5600K SPECTRAL GRAPH

5600K SPECTRUL GRAPH

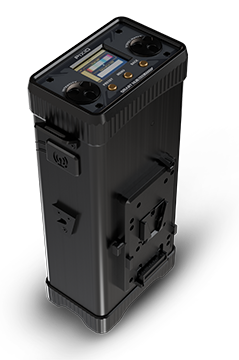

Smarthub600
SMART HUB LOGO-02

Stealths are controlled by our intelligent smart hub. It detects the Stealth fixtures connected to it and adjusts power and pixel mapping accordingly. Exclusively designed for the Stealth line-up to be compact and densely packed with features.

The hub supports a dual v-mount battery system.
This enables seamless auto power switching, effectively acting as a UPS when both the V-mounts are connected and the AC power goes out. It supports a wide AC input voltage range which means you can power it from any socket in the world without the need for clunky voltage transformers. With our intuitive UI, you can change settings in a breeze and create colours you want in just seconds.

Specifications

Product Smart Hub 600
Input Power 600W max
Input Voltage 110-230VAC
Input Current 3-6A AC
Output Voltage 33Vdc, 5V signals
Output Current 16A max
Output Connector CN-Linko LP-20-14
Weight 3.4kg
Light Modes HSI, CCT, RGB, GELS, Effects, X-Y
Control Modes BLE-Mesh, Manual, DMX
Wired DMX 5 pin XLR
Wireless DMX CRMX Receiver Chip
Wireless BLE-Mesh Pixiq App
Battery Built-in system for V-mount batteries. Insert 2 to operate on battery power. (15A max current draw) *
Rigging V lock mounting option, cord strap
Mount Kupo KCP-739 inlcuded in kit
Max Ambient Temp 40 degrees C
Max Case Temp 70 degrees C

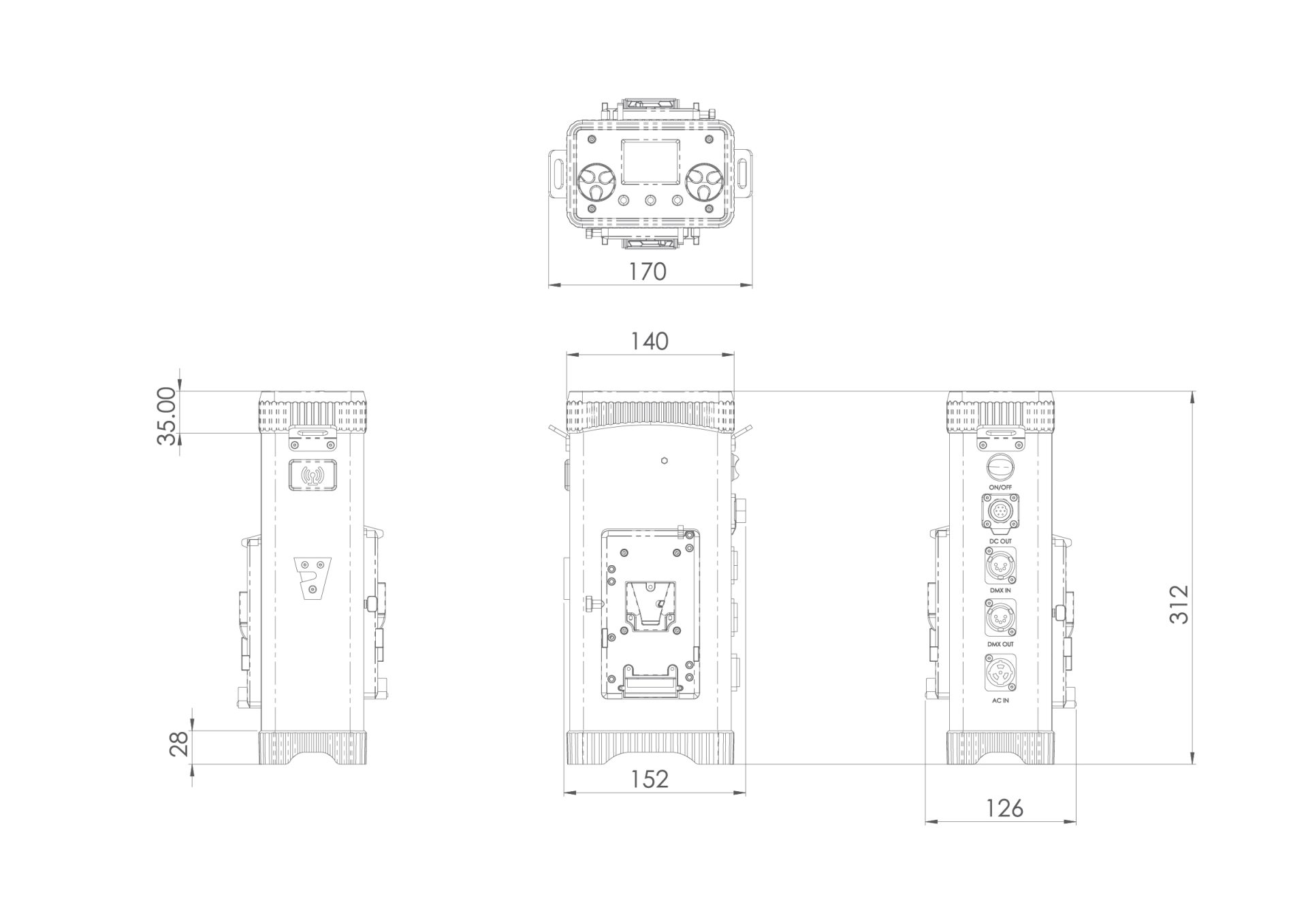

SH_600_OVERALL_DIMENSIONS-01

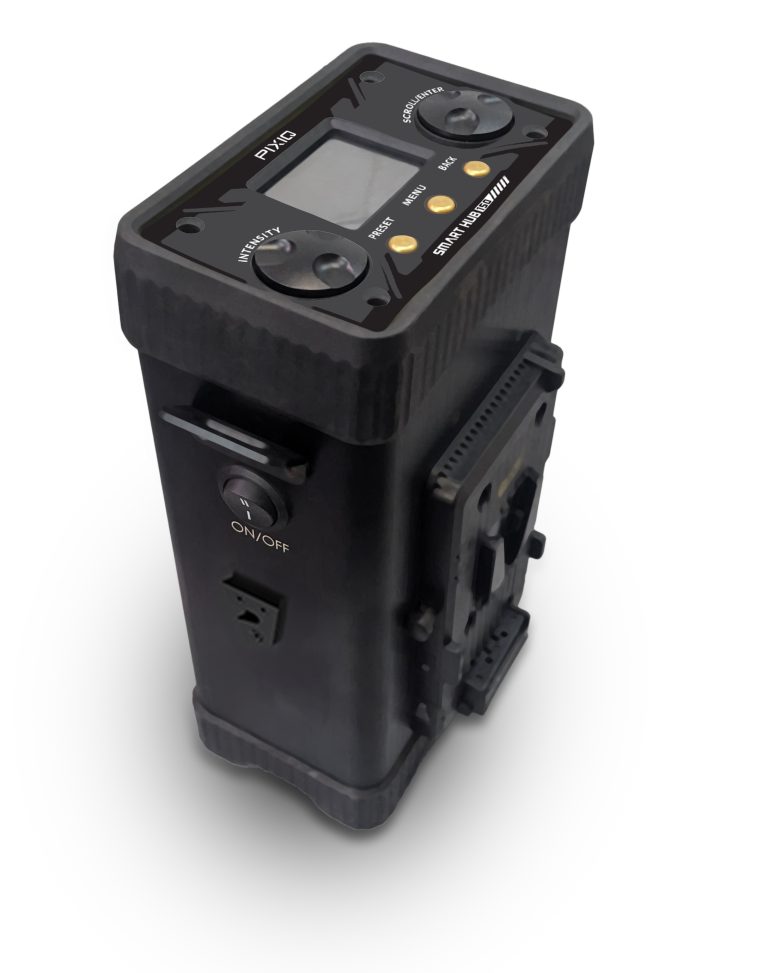

SH150
SMART HUB LOGO-01

The two variants are incredibly intelligent and can detect the fixture connected to them and adjust power and pixel mapping accordingly. Exclusively designed for the Stealth line-up to be compact and densely packed with features. Both the hubs support a dual v-mount battery system. This enables seamless auto power switching, effectively acting as a UPS when both the V-mounts are connected and the AC power goes out. It supports a wide AC input voltage range which basically means you can power it from any socket in the world without the need of clunky voltage transformers. With our intuitive UI you can change settings in a breeze and create colours you want in just seconds.

Specifications

Product Smart Hub 150
Input Power 200W max
Input Voltage 110-230VAC
Input Current 1-3A AC
Output Voltage 33Vdc, 5V signals
Output Current 6A max
Output Connector CN-Linko LP-16-8
Weight 2.2kg
Light Modes HSI, CCT, RGB, GELS, Effects, X-Y
Control Modes BLE-Mesh, Manual, DMX
Wired DMX 5 pin XLR
Wireless DMX CRMX Receiver Chip
Wireless BLE-Mesh Pixiq App
Battery Built-in system for V-mount batteries. Insert 2 to operate on battery power. (9A max current draw) *
Rigging V lock mounting option, cord strap
Mount Kupo KCP-739 inlcuded in kit
Max Ambient Temp 40 degrees C
Max Case Temp 70 degrees C
SH_150_OVERALL_DIMENSIONS-01
